Name: Capacitive proximity switch CM18
Brand: Elexpert/KAMPA
Price: 1.00 USD

Model Number : CM18

Type : other, capacitive proximity switch

Place of Origin : Zhejiang, China

Brand Name : Elexpert/KAMPA

Usage : Ray Sensor

Theory : Capacitance Sensor

Output : Switching Transducer

Brand : Elexpert/KAMPA

Certification : CE

Model : CM18

Output current : DC10-30V and AC90-250V

Output state : NO,NC,NO+NC

Sample time : within 5days capacitive proximity switch

Packaging Details : capacitive proximity switch
2pcs/inner box Standard export carton

Port : NingBo/ShangHai

Supply Ability : 10000 Piece/Pieces per Week capacitive proximity switch

MOQ : 100 Pieces

Price : $1.00 - $25.00/Pieces

Contact Now

capacitive proximity switch

Model:CM18

Capacitive proximity switch CM18

Flush	Detection distance			0-5MM
	DC6-36V	NPN	NO	3005NA
			NC	3005NB
			NO+NC	3005NC
		PNP	NO	3005PA
			NC	3005PB
			NO+NC	3005PC
	AC90-250V	SRC Control label silicon	NO	3005A
			NC	3005B
Non-flush	Detection distance			0-8mm
	DC6-36V	NPN	NO	3008NA
			NC	3008NB
			NO+NC	3008NC
		PNP	NO	3008PA
			NC	3008PB
			NO+NC	3008PC
	AC90-250V	SRC Control label silicon	NO	2008A
			NC	2008B
Control output		DC		200mA
		SCR/Relay		300mA
Detect object				conductor and dielectric body
Consumption current				DC<15mA AC<10mA
Output current				DC:200mA AC:300mA
Output voltage drop				DC<3V AC<7V
Response frequency				DC:50HZ AC:10HZ
Shell material				Resin/Metal
Working environment temperature				below 25C to 70C
Insulation resistance				50MΩ
Shell meterial				Metal
Protection grade				IEC standard IP54

Capacitive proximity switch CM18

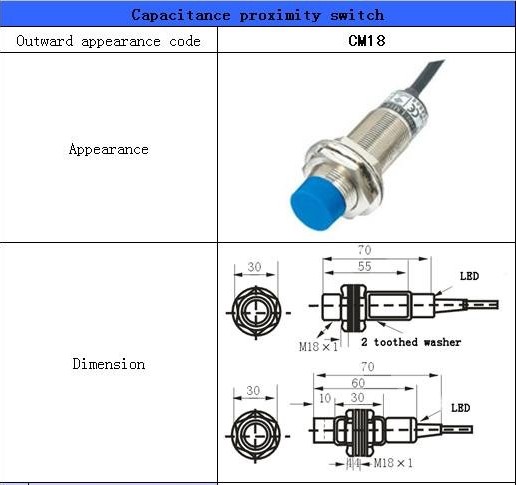

Capacitive proximity switch CM18 Images
